PRODUCT

EOC

GDCBT 400A4 EOC Slave

GDCBT400A4 series of EOC slaves are based on HomeplugAV (IEEE P1901) technology, cooperate with GDCBM600/700 series EOC ...

Current position：HOME > EOC

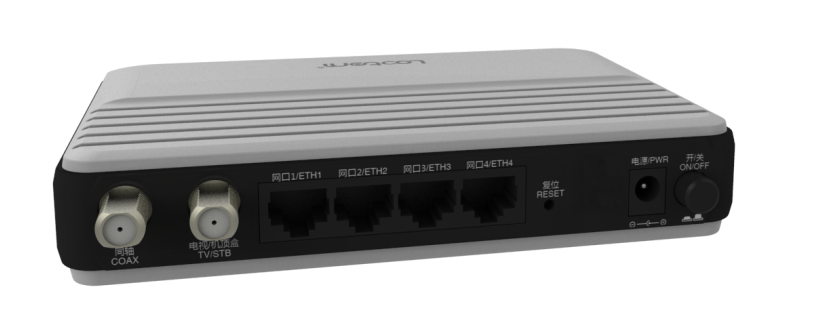

GDCBT 400A4 EOC Slave

Overview    GDCBT400A4 series of EOC slaves are based on HomeplugAV (IEEE P1901) technology, cooperate with GDCBM600/700 series EOC master network to construct layer 2 Ethernet transmission network through the TV coaxial cable.
   GDCBT400 can provide 1-4 (distinguished by type suffix) MB full-duplex Ethernet interface, can connect the computer, digital TV set-top boxes, IP telephone and so on the many kinds of terminals at the same time.Supporting QoS Settings , they can provide a variety of business types of data flow with the corresponding priority transmission security.They support bandwidth control. Each terminal’s largest uplink bandwidth can be set to prevent equipment of the user side becoming abnormal or bad impact coursed by artificial attack on the whole coaxial transmission network.Supporting encryption transmission, satisfying the needs of the high-reliability business. Features         ● Providing 1-4 10M/100M adaptive Ethernet interfaces, being used to connect to the computer, set-top boxes and IP telephone,etc
        ● Providing two RF interfaces, being used to connect unlink and downlink cable line respectively
        ● Taking up 65 MHZ below frequency band signal, and do no bad to the existing CATV signal
        ● Need no user configuration, plug and play
        ● Following 802.1 Q VLAN l QoS (802.1p) and the IGMP layer 2 protocol, etc
        ● Supporting SNMP centralized network management which is based on the national standard MIB library (draft) Technical Specifications

Item	Specification
Interface	Four 10/100M adaptive Ethernet interfaces
	Two RF interfaces, one CATV/data mixed signals input and one CATV signal output
	One external power supply interface
Indicator LED	LAN: 1 -4
	Cable: 1
	Power supply: 1
EoC protocol	Homeplug AV
Protocol	TDMA, CSMA/CA
RF	occupying frequency: 7.5～65MHz (can be customized such as 7.5~42MHZ)
Modulation method	OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO
Standard	IEEE 802.3, IEEE 802.3x, IEEE 802.3u, P1901
Transmission distance	1KM on coax
VLAN	IEEE 802.1Q(VLAN lagging)
QoS	ToS and CoS
Transmission rate	300Mbps
Encryption mode	128-bit AES encryption
SNMP	SNMPv2
802.1X	Support 802.1X access certificating
Management	SNMP, Web, CLI
Power supply	External 12VDC/500mA
Watch dog	Support
Operation Temperature	0～45 ℃
Storage Temperature	-20～70 ℃
Operation humidity	20%～95% (non-condensation)
Storage humidity	10%～90% (non-condensation)
Power consumption	< 6W
