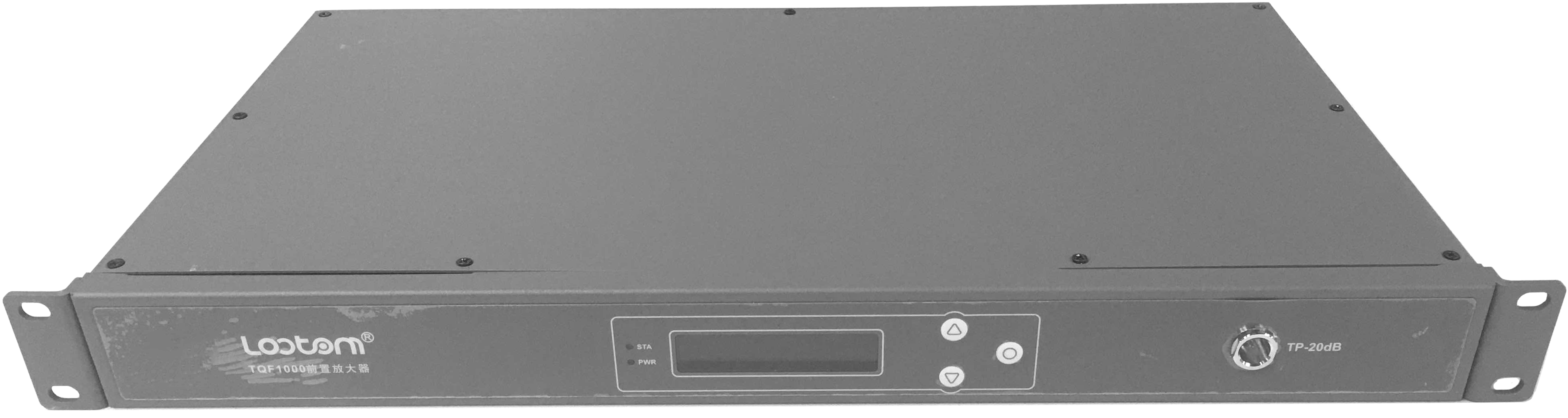

TQF1000 Pre-amplifier
The output stage adopts importe module，the c/n and nonlinear distortion are improved, and the power consumption of the whole machine is also ...
TQF1000 Pre-amplifier
|
No. |
Item |
Unit |
Performance Parameter |
| 1 |
RF bandwidth |
MHz |
47～860/1000 |
| 2 |
Input/Output reflection loss |
dB |
≥16（47～860/1000MHz） |
| 3 |
RF output signal level |
dBμV |
≥96（Single exit） |
| 4 |
Flatness of frequency response |
dB |
±0.75 |
| 5 |
Minimum full gain |
dB |
≥ 20 |
| 6 |
Nominal gain |
dB |
≥ 20 |
| 7 |
Gain adjustment range |
dB |
0～20 |
| 8 |
Slope adjustment range |
dB |
0～20 |
| 9 |
NF |
dB |
≤7.0 |
| 10 |
CTB Note.1 |
dBc |
≤7.0 |
| 11 |
CSO Note.1 |
dBc |
≥66 |
