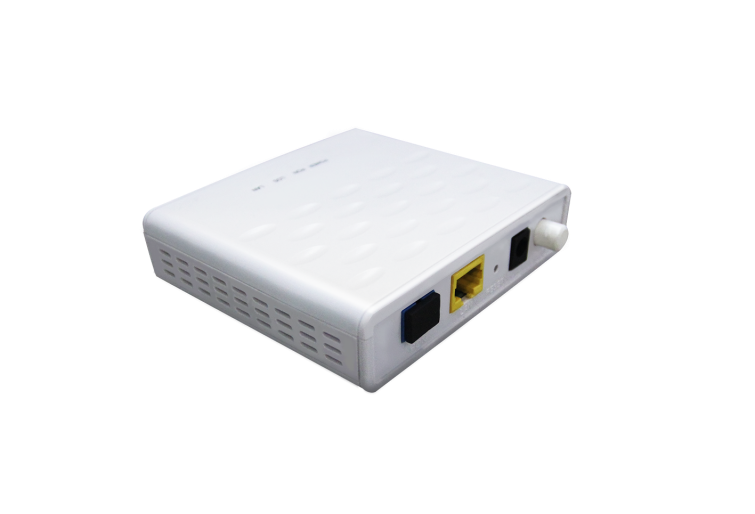

GGPON 1GE ONU GDONU300-1GE
GDONU300-1GE GPON ONU is designed for muti-business and for FTTH/O solution with bridge and router mode. It provides ...
GGPON 1GE ONU GDONU300-1GE
|
Item |
GDONU300-1GE |
|
User Networks interface |
one fixed 100/1000M BASE-T self-adaptive RJ45 interface |
|
PON interface |
Up and down symmetrical transmission rate:1GBPS Network coverage radius : 20 km Optical interface type：SC/PC Optical receiver with high sensitivity : ≥-26dBm Luminous power：-1~4dBm |
|
Dimension |
102 mm(W) x 91 mm(D) x 28 mm(H) Box dimension: 235 mm(W) x 250 mm(D) x 70 mm(H) Weight: 120g |
|
Installation ：plug and play |
|
|
Surroundings Parameter |
Operating temperature：0℃～50℃ |
|
Storage temperature：-40℃～80℃ |
|
|
Power supply |
DC12V/0.5A adapter type power supplying |
|
Power consumption |
<3.5W |
|
Body case |
Plastic case |
